XPS AND EPS BOARDS

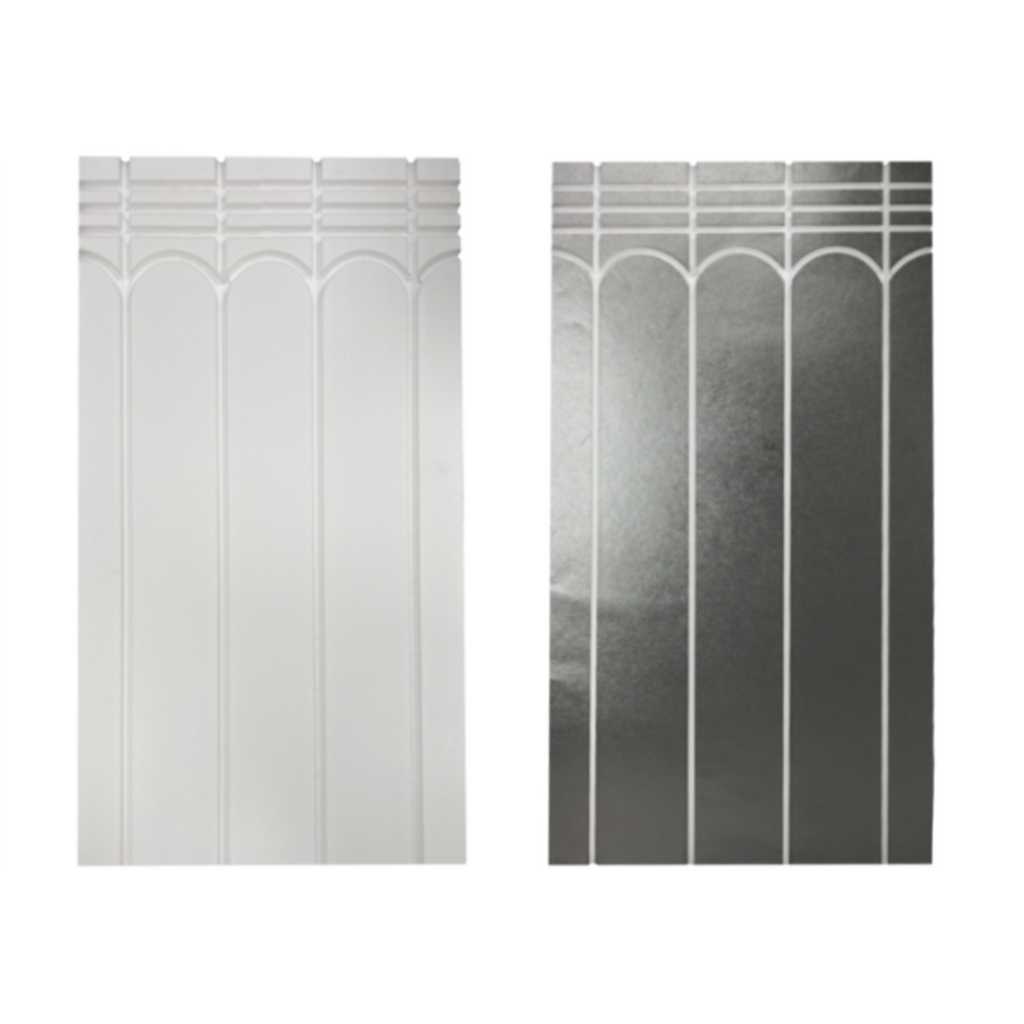

Low-profile underfloor heating insulation board available with or without foil for either 12mm or 16mm or for between joist systems.

Our Radical Lite XPS insulation boards are suitable for under screeds, chipboard, in heated slabs and below suspended slabs.

Our XPS boards are lightweight and easy to install and do not require specialist equipment to install.

Benefits include:

• Low profile retrofit system
• Extremely cost effective solution
• Pipe centres at 150mm or 200mm
• Suitable for 12mm or 16mm pipe
• Maintains thermal efficiency throughout the life of building

PRODUCT CODE

Product                                      Pipe       Centres       Code

XPS300 x 18mm – FOILED     12mm     150mm    RHS32-005

XPS300 x 18mm – NO FOIL    12mm    150mm    RHS32-022

XPS300 x 20mm – FOILED    16mm     150mm    RHS32-009

XPS300 x 20mm – FOILED    16mm     200mm   RHS32-004

XPS300 x 25mm – NO FOIL   16mm     150mm    RHS32-021

XPS400 x 20mm – FOILED    16mm    150mm     RHS32-019

EPS400 x 16mm – FOILED     12mm     150mm    RHS32-024

EPS400 x 16mm – NO FOIL    12mm    150mm    RHS32-025

EPS400 x 20mm – FOILED     16mm    150mm    RHS32-027

EPS400 x 20mm – NO FOIL   16mm    150mm    RHS32-026

EPS400 x 20mm – FOILED     16mm    200mm   RHS32-028

EPS400 x 25mm – FOILED     16mm    150mm    RHS32-029

EPS400 x 25mm – FOILED     16mm    200mm   RHS32-030
