    CEMENT FACED BOARDS

    CEMENT FACED BOARDS

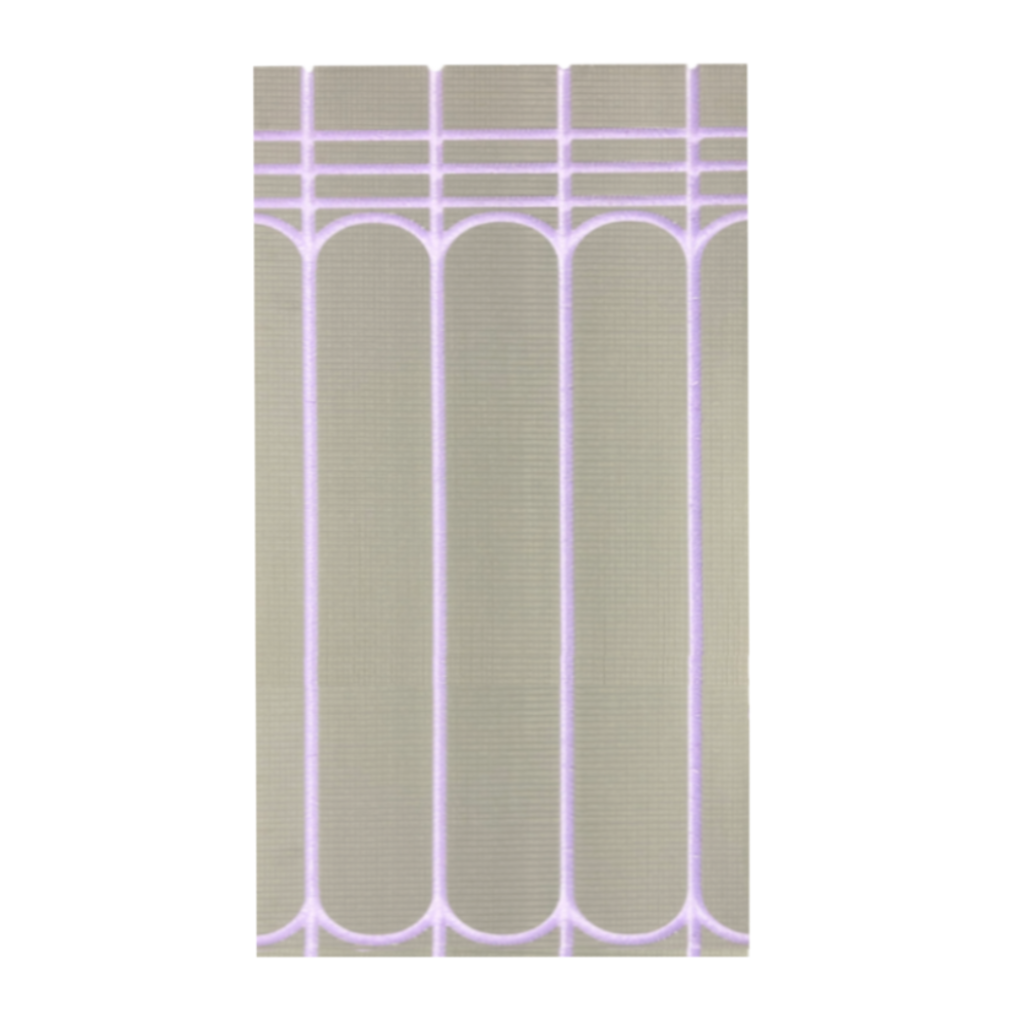

    A low-profile insulated underfloor heating board. It has durable cement coatings on either face that are suitable for the direct application of tiles or wood flooring (on underlay).

    The board size is 1200mm x 600mm x 20mm, and is fully grooved on one face to suit either 12 or 16mm diameter underfloor heating pipes.

    Our Cement faced boards are suitable for use over both timber or concrete sub floors. For most floor finish applications, flooring can be layed directly to the upper surface making for efficient installation.

    Benefits include:

    • High compressive strength of 300kPa
    • Low profile just 20mm high
    • 0.72m² area per board
    • Accepts direct tiling
    • Options for either 12mm or 16mm pipe
    • Lightweight and easy to install
    • 150mm pipe centres.
    PRODUCT CODE

    Cement Faced Board for 12mm pipe       1200 x 600 x 20      RHS32-014

    Cement Faced Board for 16mm pipe       1200 x 600 x 20      RHS32-016

    Typical Floor Build Up
