    Stainless steel manifolds for use on underfloor heating systems
    Radical Heating Solutions Ltd > Underfloor Heating > Manifolds

    Stainless Steel Manifolds (Underfloor Heating)

    Stainless steel manifolds for use on underfloor heating systems

    Radical manifolds consist of two manifold bars, one for the flow and one for the return and come complete with ball valves, drain / filling valves and air vents.

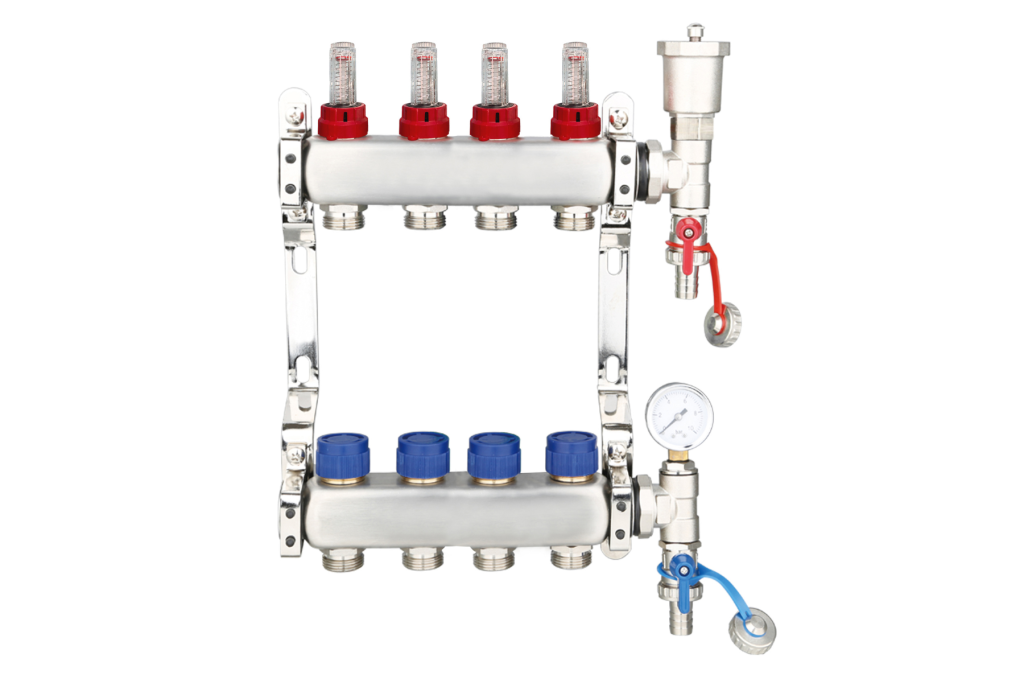

    6 Port Manifold for underfloor Heating System
    Technical Diagram of Manifold

    Stainless Steel Manifolds (For use with Underfloor Heating Systems)



    Stainless steel manifolds for use on underfloor heating systems



    Overview:



    Radical manifolds consist of two manifold bars, one for the flow and one for the return and come complete with ball valves, drain / filling valves and air vents.



    On the flow bar, each port has an adjustable flow indicator with isolator including an easy to read gauge.



    Each port on the return bar is supplied with an integral control valve and protection cap which allows the user to the volume of water or can be removed to accept a thermoelectric actuator.



    Features:



    • Stainless steel body
    • Supplied pre mounted on installation brackets
    • Maximum supply pressure 6 bar
    • Flow meters with isolating valves included
    • Filling/Drain off points included in pack
    • Valves on return accept thermoelectric actuator heads
    • Primary connections are 1” FBSP
    • Manual Air bleed vales included ½” MBSP
    • 1” ball valves supplied in pack
    • Connections are Euroconus and are available to suit most UK pipe sizes
    • 900 UFH Connection elbows available (as separate item) for Close coupling of pump pack
    INSTALLATION GUIDE

    Sizes from 2 ports to 12 ports

    Manifold Dimensions

    CODEProductConnectionsOverall HeightPrimary CentresPort CentresOverall Width (No Pump or auto air vent / pressure gauges)Fitted Depth (no Pump)Overall Width (with Pump)Fitted Depth (with Pump)
    SizeABCDE
    RAD 022 Circuit UFH manifold kit1"3252105012692.5431175
    RAD 033 Circuit UFH manifold kit1"3252105017692.5481175
    RAD 044 Circuit UFH manifold kit1"3252105022692.5531175
    RAD 055 Circuit UFH manifold kit1"3252105027692.5581175
    RAD 066 Circuit UFH manifold kit1"3252105032692.5631175
    RAD 077 Circuit UFH manifold kit1"3252105037692.5681175
    RAD 088 Circuit UFH manifold kit1"3252105042692.5731175
    RAD 099 Circuit UFH manifold kit1"3252105047692.5781175
    RAD 1010 Circuit UFH manifold kit1"3252105052692.5831175
    RAD 1111 Circuit UFH manifold kit1"3252105057692.5881175
    RAD 1212 Circuit UFH manifold kit1"3252105062692.5931175
    All dimensions in mm unless otherwise stated
