Eco Manifolds

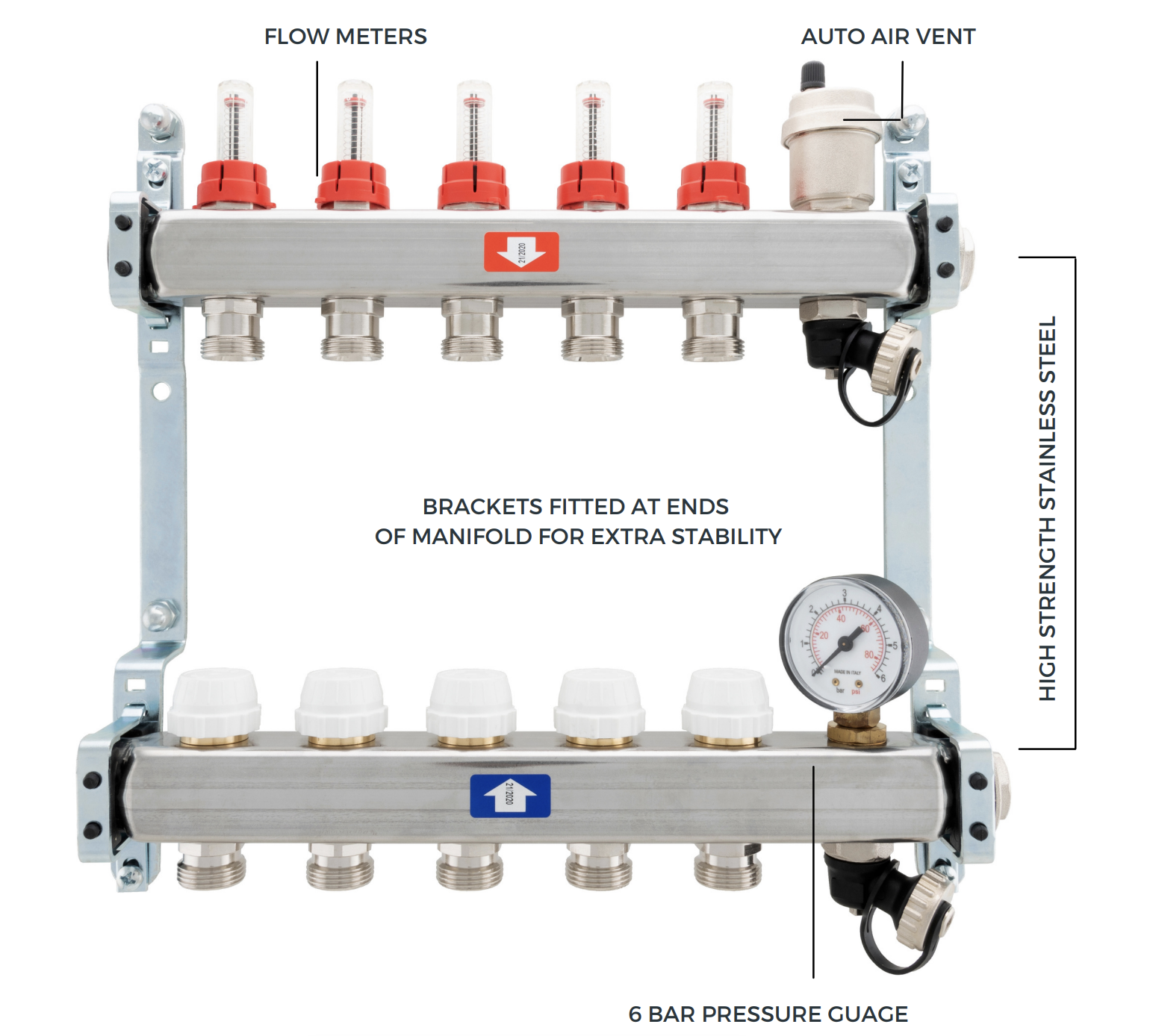

Pre-Assembled Eco Stainless Steel Underfloor Heating Manifolds

Stainless steel manifold for 2 up to 12 heating circuits for distribution, shut-off and balancing of the heating/cooling water flow of radiant panel heating/cooling systems in compliance with BS EN 1264-4.

The flow rate for each heating circuit can be continuously adjusted via a regulating shut-off valve integrated in the return circuit.

Features:

• M30x1.5 valve connection for all common actuators (optional accessory).
• Precise adjustment even at high flow rates.
• Premium quality O-ring valve gaskets (EPDM) ensure permanent ease of operation and high durability.
• 1″ MT flat-sealing connections to heat generator; connection to heating circuits via ¾” Eurocone for clamp ring screw connections.
• Includes an end set with ¾” swivel connection for shut-off, filling, draining and flushing.
• Ready-mounted on wall bracket, with low-noise pipe clamps in accordance with DIN 4109.
• A wide range of supplementary systems available, such as pump groups, hydraulic control units for manifolds, heat interface units, and many more.
