Manifold Control Packs

Overview:

Our range of modular control packs for underfloor heating systems are designed to connect directly to a standard UFH manifold without the need for extra brackets or support.

Features:

• • Quick and simple installation with Integrated mixing valve provides controlled mixed temperature water.
  • Easy set up with adjustable range of 25°C to 60°C
  • Controls flow temperature to +/- 2°c
  • Reversible via interchange of the blanking cap and pump union
  • A rated pump with 7 metre head (A rated)
  • Options available without mixing valve for heat pump systems.

Product:                                      Code:                    Ball Valve Code:

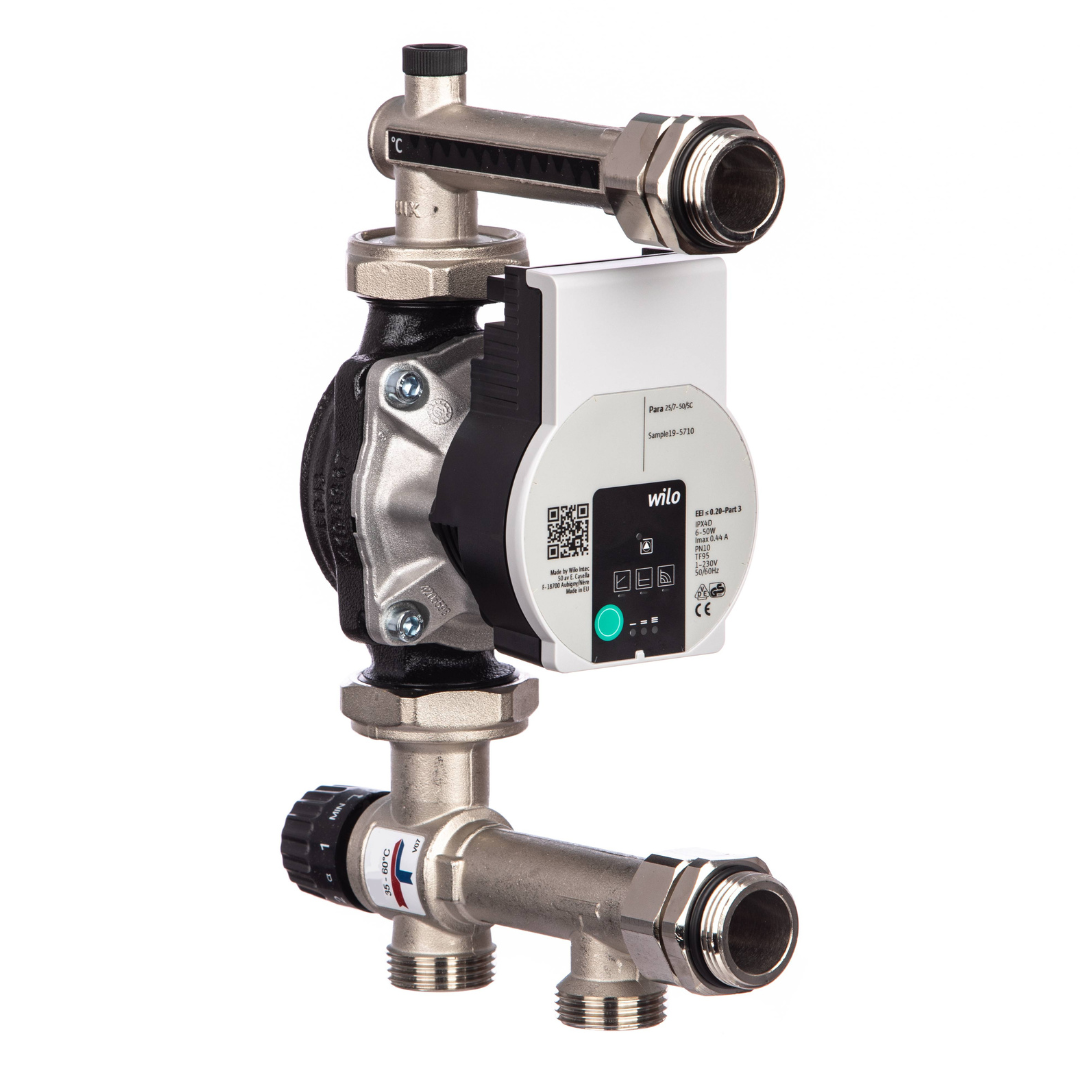

Wilo 7m head pump               RHS10-002         RHS50-012

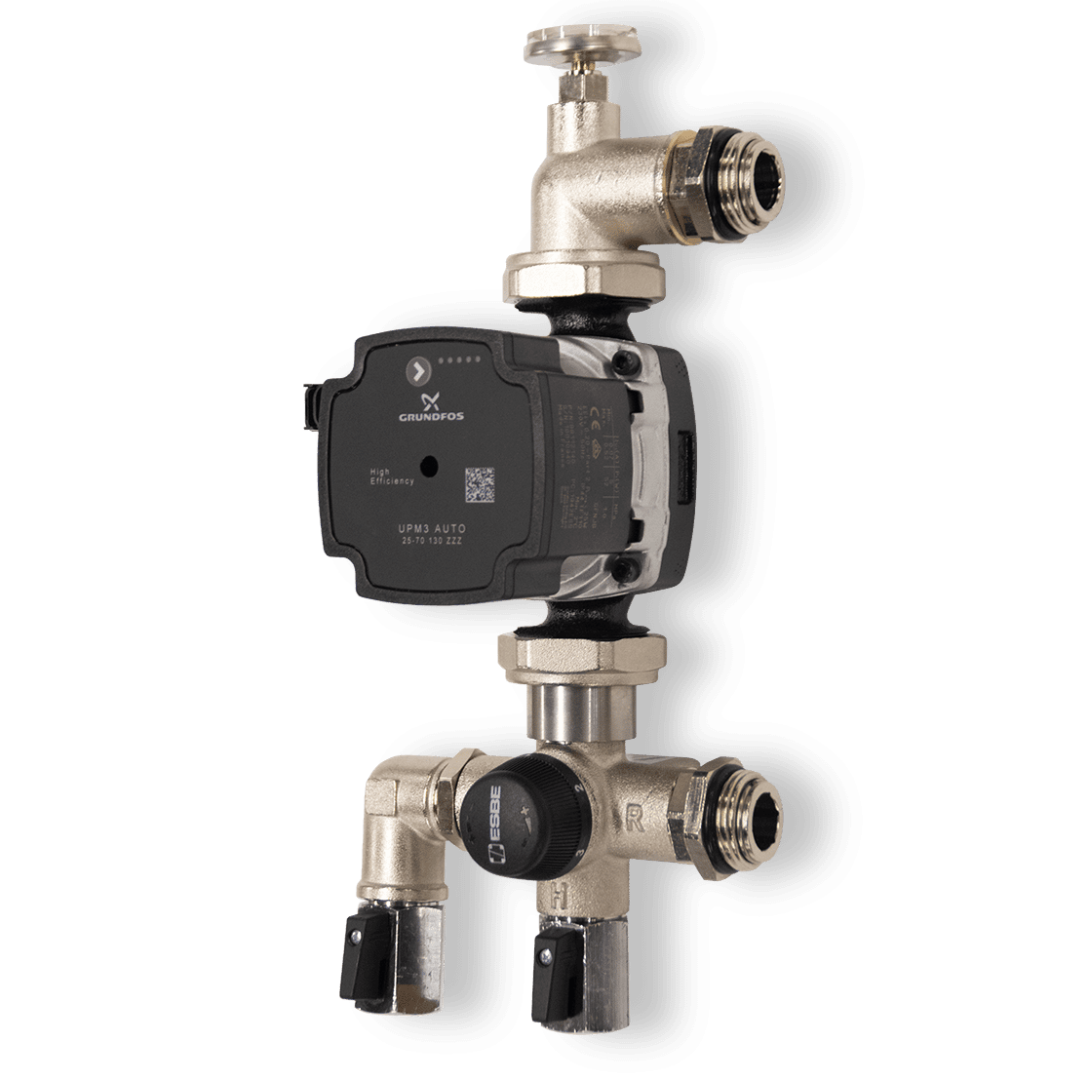

Grundfos 7m head pump      RHS50-005         RHS50-005

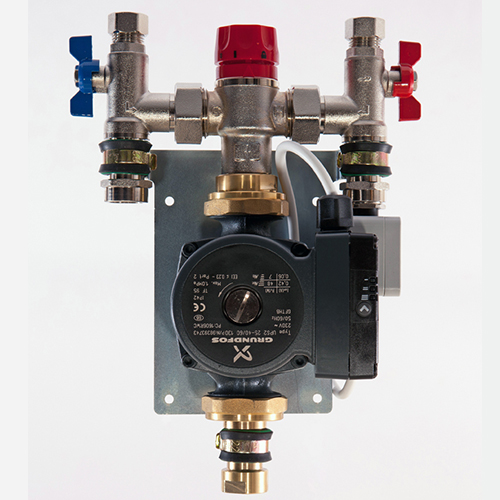

Single Room UFH Control Pack

Overview:

A modular control pack for underfloor heating systems designed to connect directly on to pipe work without the need for extra brackets or support.

Includes:

• Integrated mixing valve
• Circulating pump
• Isolating valves
• Flow and return connections
• Fixing kit

Features:

• Quick and simple installation with easy set up
• Adjustable range of 35°C to 60°C
• Controls flow temperature to +/- 2°C
• Pre wired connection box for thermostat
• Includes isolating valves as standard
• A rated pump with 7m head
• Inlet/outlet 15mm x 1/2″ FBSP

Product Codes:
Size         Code               Includes

20m²       RHS11-001     100m x 16mm pipe, dial thermostat, 300 clips, euroconus

30m²       RHS11-002     200m x 16mm pipe, 2 port manifold, 600 clips, thermostat and 2 port zone valve.

40m²       RHS11-003     200x x 16mm pipe, 2 port manifold, 4 euroconus, 3oo clips and dial thermostat.

40m²       RHS 11-004     WIRELESS. As above but with wireless thermostat and receiver.
