Screed Plates (gypsum)

RADICAL SCREED PLATES FOR UFH

As part of our range of low floor build up solutions we have developed the Radical screedplate system of lay over floor covering incorporating the underfloor heating pipe work within an 18mm board height.

This is an excellent solution in cases where the floor build up depth is limited – commonly found on refurbishment projects where floor to ceiling heights are fixed and limited.

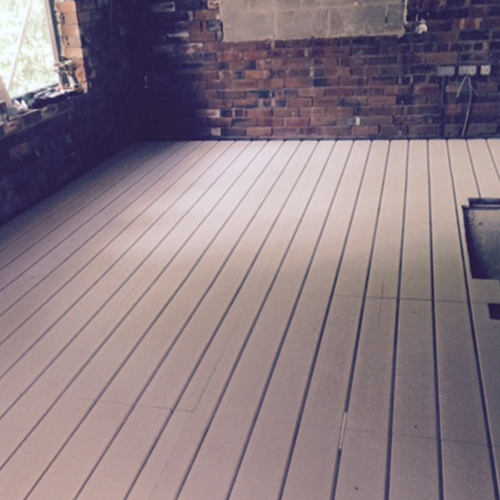

The system can be used in existing and new build installations only requiring a flat and level solid sub floor for the screedplate to underpin ceramic tiles or stone which can be laid directly on top.

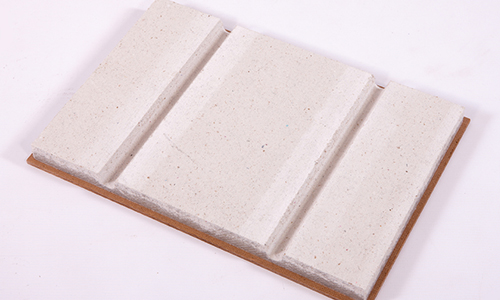

The board is pre-grooved to take 12mm underfloor heating pipe work and can be supplied in straight routed panels or fully routed returns panels to suit unusual floor geometry and pipe runs.

• Pre grooved Screedplate has slim line 18mm finished height
• Pipe centres are at 150mm to distribute heat quickly across surface area
• Boards have pre routed channels for 12mm pipe

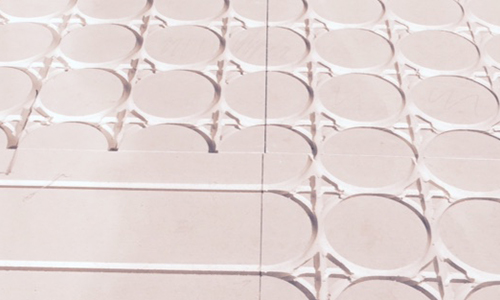

• Versatile options of straight and fully routed sections
• Easy to install
• Fast reaction times and high compressive strength
• Ceramic tiles, stone, engineered wood and laminate floors can be fitted directly on top (subject to manufacturer installation guides)
